Ford Expedition (U324; 2009 - 2014) - fuse box diagram. Year of production: 2009, 2010, 2011, 2012, 2013, 2014. Passenger compartment fuse panel. Explore interactive fuse box and relay diagrams for the Ford Expedition. Fuse boxes change across years, pick the year of your vehicle: Fuse box diagrams 2022 Expedition.. Fuse box diagrams 2009 Expedition. Fuse box diagrams 2008 Expedition. Fuse box diagrams 2007 Expedition. Fuse box diagrams 2006 Expedition.

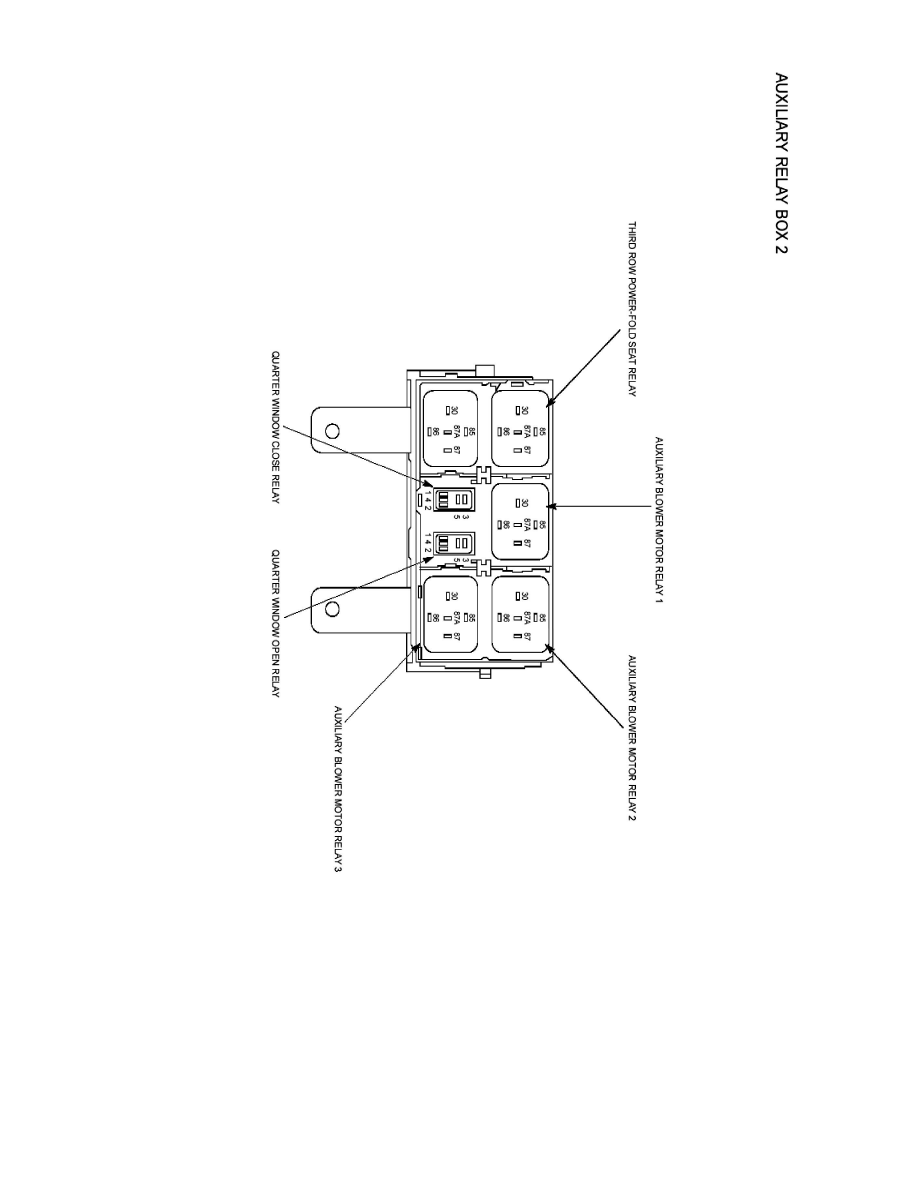

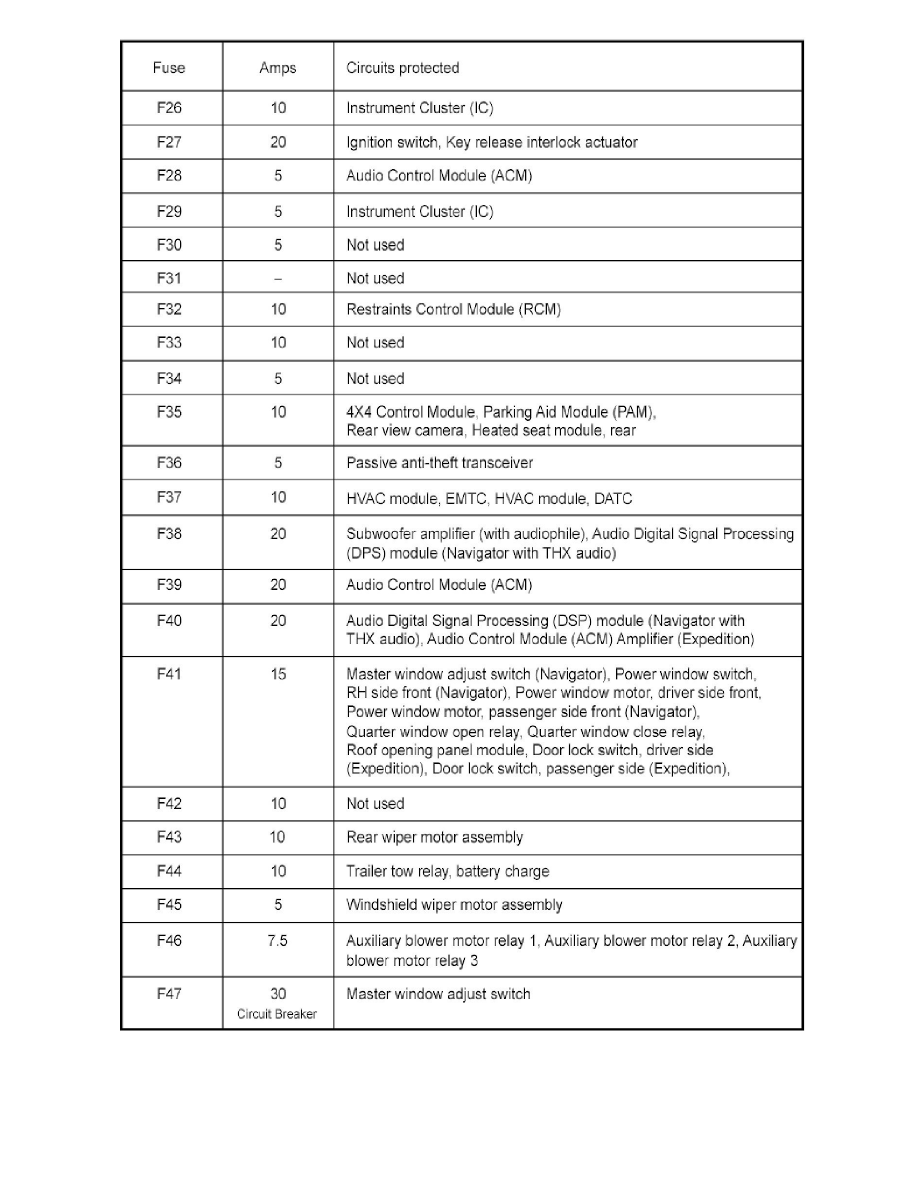

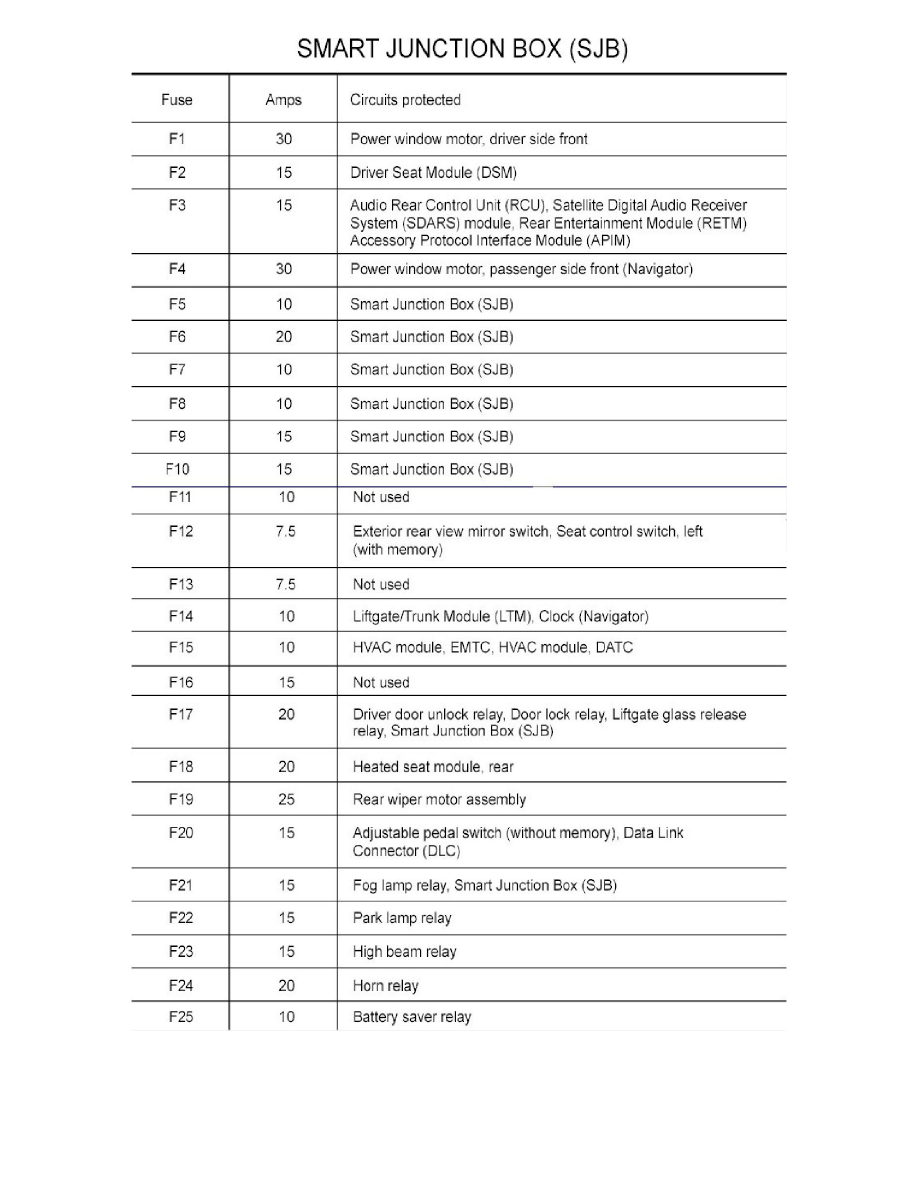

Car Fuse Box Diagram 2011 Ford ExpeditionFord Service and Repair Manuals > Expedition 2WD V85.4L (2009Ford Expedition Fuse Box RepairFord Expedition Fuse Box Diagram 20042009 Ford Expedition fuse box diagram StartMyCarFord Expedition Fuse Box Diagram pemathinleeFord Service and Repair Manuals > Expedition 2WD V85.4L (20092009 Ford Fusion Fuse DiagramFuses and relays box diagram Ford Expedition2009 Ford Expedition Fuse Box DiagramFord Manuals > Expedition 2WD V85.4L (2009) > MaintenanceFuse Box Diagram Ford Expedition (U553; 20182021)Ford Expedition Fuse Box LocationFord Expedition Fuse Box Diagram2009 Ford Expedition Fuse Box DiagramFord Manuals > Expedition 2WD V85.4L (2009) > Maintenance2018 Ford Expedition 2WD Fuse Box DiagramsFuses and relays box diagram Ford ExpeditionFord Expedition Fuse Diagram (U324; 20152017)Fuse box location and diagrams Ford Expedition (20072014) YouTubeFuses and relays box diagram Ford Expedition 2Ford Expedition Fuse Box Diagram MotoGuruMagFuse Box Diagram Ford Expedition 2G And Relay With, 55Ford Expedition Fuse Panel DiagramFord Expedition III (20072017) fuse box diagrams & schemesFord Expedition STARTER FUSE & RELAY LOCATION (2009 2014) YouTubeFord Expedition Fuse Panel DiagramQ&A Ford Expedition Fuse Box Diagram & Fuel Pump RelayCar Fuse Box Diagram Ford Expedition2009 Ford Expedition fuse box diagram StartMyCar
Location of Fuse Boxes. Passenger Compartment Fuse Panel: The fuse panel is located under the right-hand side of the instrument panel. To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.. Ford Expedition (2009-2014) Fuse DiagramFuse box diagram (fuse layout), location and assignment of fuses and relays Ford Expedition (2009, 2010, 2.
