The headlights are not coming on but everything else works. Bike blew the 15A fuse twice in a day. After I replaced the fuse, the high beam light worked for a couple mins, then wouldn't come back on. All the fuses are good and so are the relays.. relay signal? When installing the HIDs, everything except ONE positive wire on your inverter plugs into the headlight plug, the inverter pos wire goes on your battery. On my bike I had (from memory) pink+green, white, blue and a black wire. @Genie, do you still have the text with what connects to what? Basically whatever he posts, do the opposite

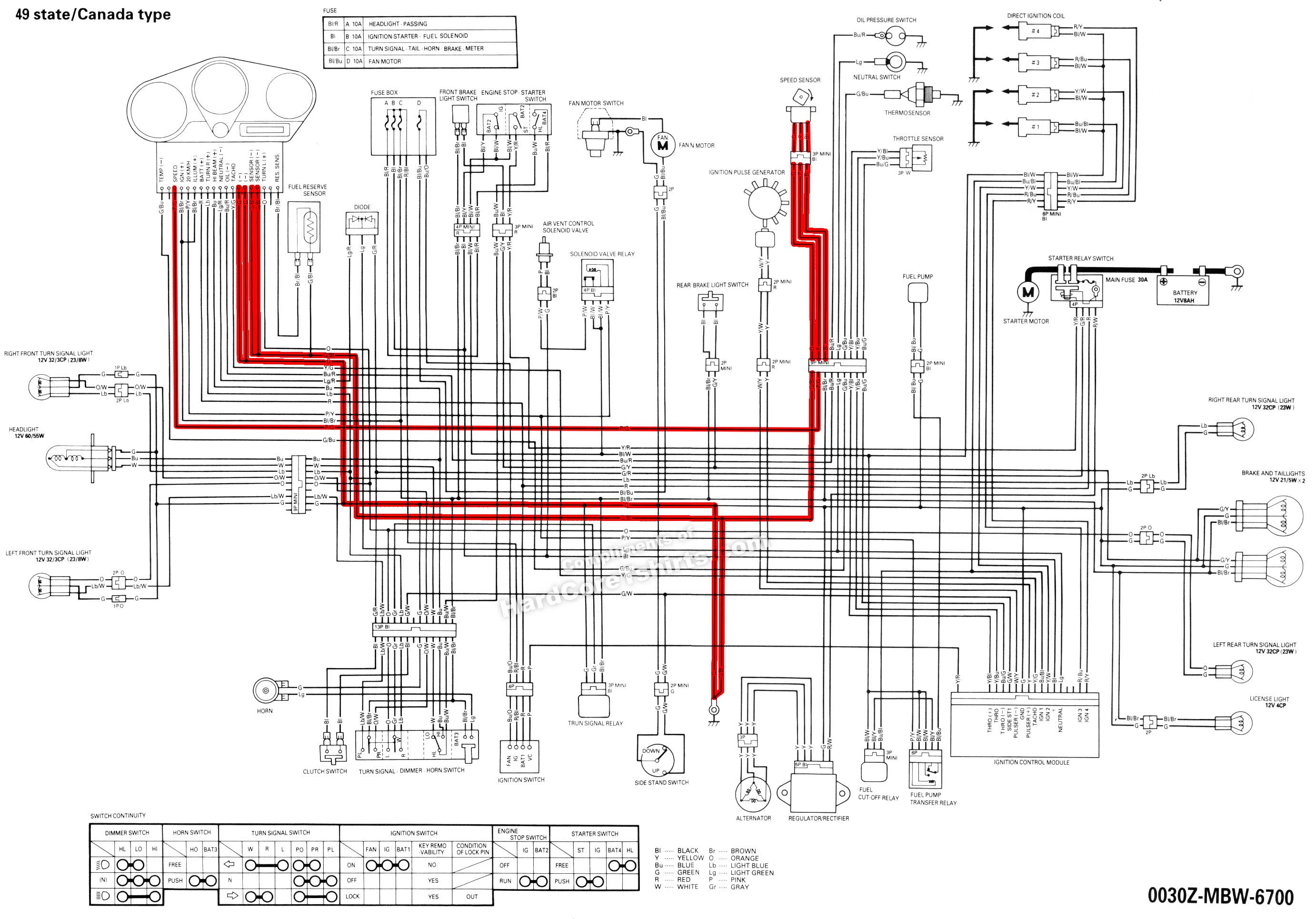

wiring diagrams 02 sensori nat ignition switch nat combination meter turn signal relay lcd. headlight turn signal-engine stophorn neutral. oil.tempmeter.tachometer.. clock on key on off lock . title: honda cbr600rr workshop manual author: korn's bookshop created date: 5/23/2022 9:48:16 am.. Discover the wiring diagram for the 2003 Honda CBR600RR, a powerful and popular sport bike.. This section of the diagram provides information about the wiring for the headlights, tail lights, turn signals, and other lighting components.. The fuse box on the 2003 Honda CBR600RR is usually located under the seat. To access it, you will need.
