Volvo 940 (1994) wiring diagrams fuse panel Carknowledge.info

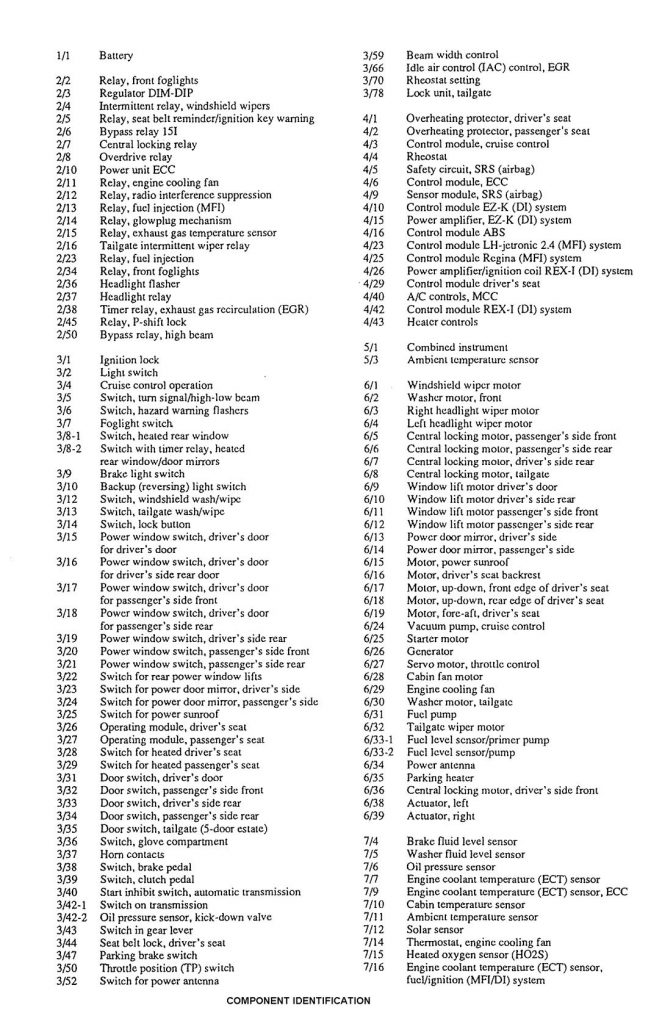

See the following diagrams for fuse locations in 740/940 and some 760/all 960 cars:. See the right illustration. Beginning in 1995, 960 cars have relays in the engine compartment and in the fuse panel shown above. 1994/1995 940 B230FD non-turbo cars using either Bosch or Regina. The Volvo wiring diagrams show that the 3 doors and hatch.. In this article you will find information describing the fuses and relays of the Volvo 940 with fuse box diagram and its location. Select the fuse responsible for the cigarette lighter. The purpose of the fuses and relays may differ from the one shown and depends on the year of manufacture, the level of electrical equipment and the region where.

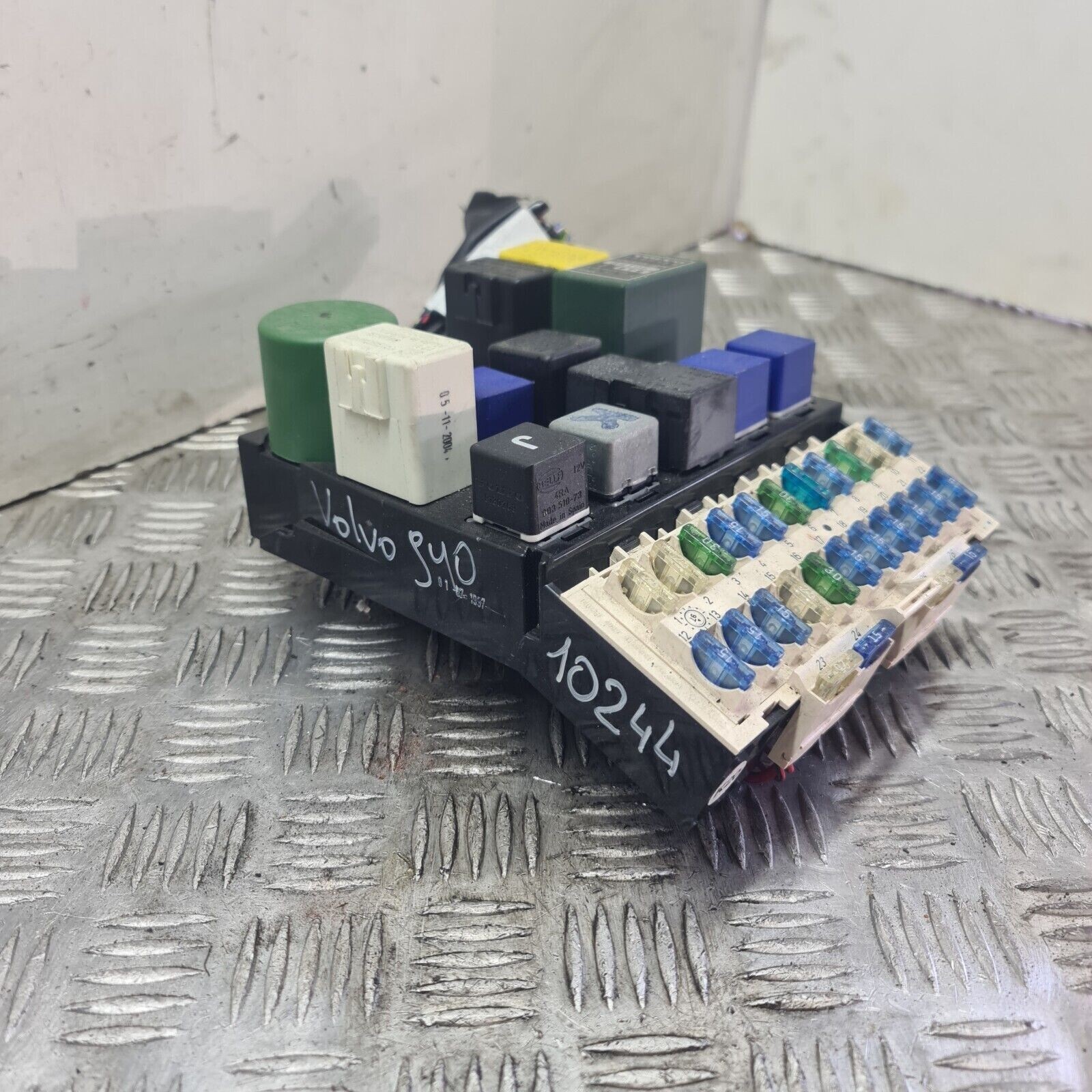

Volvo 940 (1994) - fuse box diagram Year of production: 1994 Fuse box in instrument panel The fuses (and relays) are located in the central electrical unit behind the ashtray in the center console. Position Function Ampere rating [A] 1 Fuel pump (main), engine control systems 25 2 Central locking, hazard warning flashers, headlight flashers.. On vehicles equipped with Anti-Lock Brakes (ABS), the system is protected by an additional 10 Amp fuse located under the instrument panel to the left of the steering wheel. Passenger Compartment Relay Box (940 SE ('90-'91), 960 ('90-'94)) The relay panel is located in the center of the instrument panel. To gain access to the panel, remove the.
