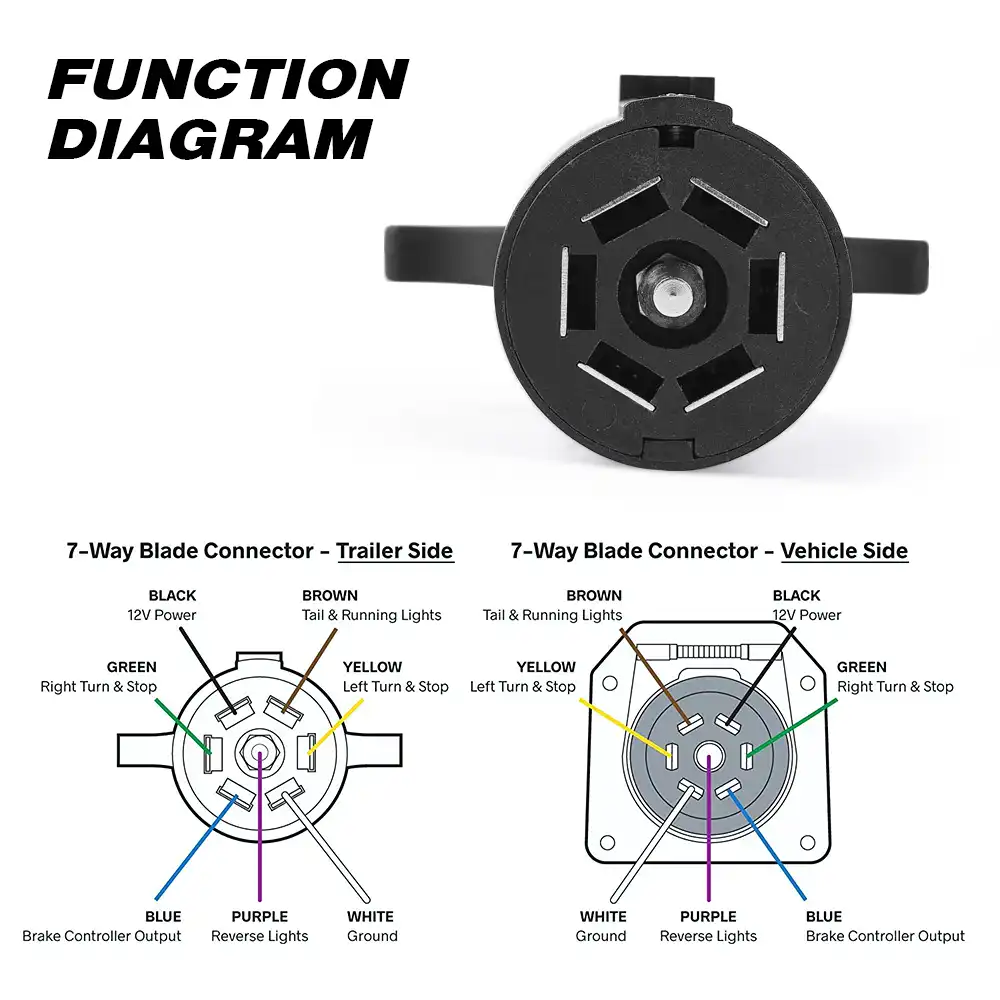

Whether you're installing a new connector or replacing a worn-out one, having a clear 7-way blade plug wiring diagram ensures safe, accurate hookups every time. This plug style features seven pins, each responsible for a specific electrical function. Proper wiring keeps your trailer lights working, your brakes responsive, and your trip worry.. Standard Wiring* This is the most common (Standard) wiring scheme for RV Plugs and the one used by major auto manufacturers today.
![[DIAGRAM] 7 Blade Trailer Plug Wiring Diagram Color](https://www.rvupgradestore.com/v/vspfiles/assets/images/z11.jpg "[DIAGRAM] 7 Blade Trailer Plug Wiring Diagram Color")
Looking for a diagram of a 7 wire plug for your RV? Find the information you need to wire your RV's electrical system correctly with a comprehensive diagram and step-by-step instructions. Ensure that all your appliances and components are properly connected for a safe and efficient camping experience.. No electrician needed. Wire your trailer lights with our 7-way diagrams and walkthrough, or watch our how-to video. Perfect for beginners and DIY enthusiasts!
